Sale!

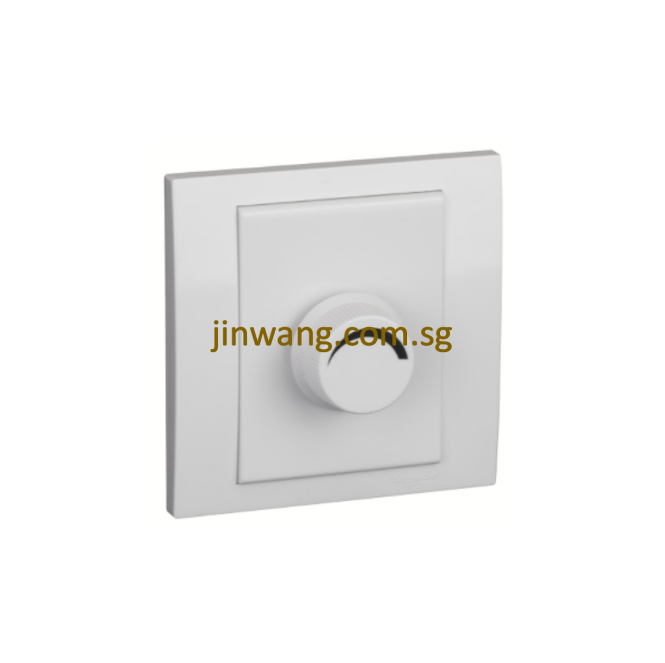

Schneider Vivace 1 Gang 10A 230VAC Dimmer KB31RD250T

Original price was: $53.00.Current price is: $40.00.

Complementary
Device mounting	Surface
fixing mode	By 2 screws
Dimmer type	Rotary dimmer
Dimmer application	Resistive load
Dimmer additional information	2-wire connection
Dimmer control	ON/OFF push, level by turning knob
Control type	Rotary knob light control dimming up/down control
Switch function	1-pole 2-way push-button
Function available	Light control
Product destination	Flush mounted box
Load type	2 x 240 V AC incandescent lamp, electronic ballast: 250 W halogen lamp: 250 W LED lamp: 100 W low voltage halogen lamp with electronic transformer, electronic ballast
[Ue] rated operational voltage	220…240 V AC 50 Hz
rated current/voltage	10 A at 240 V AC
Maximum permanent current	10 A
Protection type	Electronic short-circuit and automatic overload protection
Wiring configuration	2 wires
Connections – terminals	Screw terminals
Wire stripping length	10 mm
Number of loop terminals	1
shape of screw head	Slotted
Clamping connection capacity	1 x 2.5 mm² for rigid or stranded cable(s) 2 x 1.5 mm² for rigid or stranded cable(s)
Material	Polycarbonate: cover Polycarbonate: grid plate
Surface finish	Glossy
Type of packing	Plastic bag
Number of gangs	1 gang
Number of modules	1 module
Embedding depth	20 mm
Height	87 mm
Width	87 mm
Depth	37 mm
Projecting depth	17 mm

Environment
Ambient air temperature for operation	-5…35 °C
Ambient air temperature for storage	0…60 °C
Relative humidity	5…95 %
Standards	IEC 60669-1, 1998-Ed.3 + A1, 1999 IEC 60669-2-1, 2002-Ed.4
Product certifications	SIRIM
IP degree of protection	IP20 indoor

Contractual warranty
Warranty (in months)	18
